Essential Night Vision Goggle Parts Everyone Should Know

Night vision goggles are reliable resources that military personnel, wildlife specialists, and other professionals use to observe and gain insight on their surroundings in the dark. For the best visual display, these accessories feature multiple components that adjust brightness, clarity, and other elements. Find out the essential night vision goggle parts everyone should know to understand how these devices benefit a variety of industries.

Image Intensifier Tubes

The image intensifier tube converts available light into visible images that users can clearly observe during nighttime operations. Without this feature, night vision goggles would fail to provide accurate visuals for operators.

How Image Intensifier Tubes Function

Image intensifier tubes capture minimal light sources such as starlight or moonlight through their photocathode surface. The photocathode transforms incoming photons into electrons, which then travel through a vacuum tube where a microchannel plate amplifies them thousands of times. This amplification process creates the bright green images that users see through their night vision goggles.

Generation Classifications

Military and civilian operators typically encounter three main generations of image intensifier tubes. First, Generation 1 tubes offer basic night vision capabilities at affordable prices but produce lower image quality. Generation 2 tubes provide significantly improved resolution and light sensitivity, which makes them popular among law enforcement agencies.

Generation 3 tubes deliver the highest performance levels with exceptional clarity and extended operational life. Because of their higher price point, high-security and military industries will typically get the most value from these advanced technologies.

Tube Lifespan

Most image intensifier tubes maintain optimal performance for 10,000 to 15,000 hours of operation. However, environmental factors such as extreme temperatures, moisture exposure, and bright light can reduce this lifespan considerably.

Objective Lenses

The objective lens system collects and focuses available light before it reaches the image intensifier tube. These miniature optical components determine the field of view and overall image sharpness that operators experience during use.

Focal Length

Objective lenses with shorter focal lengths provide wider fields of view so users can observe larger areas simultaneously. Longer focal length lenses offer narrower fields of view but deliver greater magnification for detailed observation of distant objects. Most standard night vision goggles feature focal lengths between 25 mm and 50 mm for balanced performance.

Coating Technologies

High-quality coatings protect lens surfaces from scratches and environmental damage. For instance, antireflective coatings on objective lenses produce high light transmission while minimizing unwanted reflections that could reveal user positions. Along with this, multilayer coatings reduce light loss by up to 99%, so that image intensifier tubes receive maximum available light for optimal performance.

Aperture Settings

Larger aperture openings allow more light to enter the system, improving performance in extremely dark conditions. However, wider apertures can also introduce optical distortions around image edges. Manufacturers use proper aperture sizing with optical quality to achieve the best overall performance for specific applications.

Eyepieces

Eyepieces magnify the intensified image from the tube and present it to the user’s eyes in a comfortable viewing format. While not as technologically advanced as other parts, these components influence user comfort during extended observation periods.

Magnification

Most night vision goggles feature eyepieces with 1x magnification to maintain natural depth perception and spatial awareness. For specific applications, higher magnification eyepieces are available if operators need to monitor detailed environments or distant targets. However, increased magnification reduces field of view and can make tracking moving objects more challenging.

Eye Relief Distance

Proper eye relief distance offers comfortable viewing without eye strain or fatigue. Standard eyepieces provide 20 mm to 25 mm of eye relief and accommodate users who wear prescription glasses. Adjustable eyepieces allow operators to customize the viewing distance for optimal comfort during extended missions.

Diopter Adjustments

Individual diopter adjustments compensate for differences in user vision between the left and right eyes. These miniature adjustment mechanisms reduce eye strain and improve overall image clarity. Quality diopter systems maintain their settings reliably, even during intense physical activity.

Housing and Mount Systems

The housing protects delicate internal components using secure mounting options for various operational requirements. Modern housing designs balance durability with weight considerations for extended field use.

Material Construction

High-grade aluminum and polymer materials resist impact damage with their minimal weight profiles. Some housing units also include waterproof sealing, which prevents moisture infiltration that could damage sensitive electronic components. Shock-resistant designs protect miniature internal parts from vibration damage during vehicle operations or physical activity.

Mounting Configurations

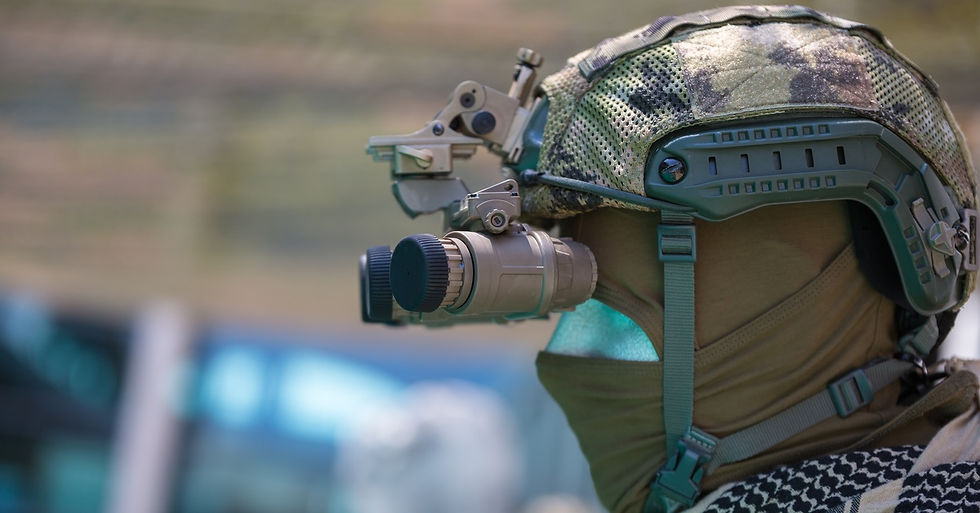

Helmet mount systems allow hands-free operation for tactical applications. The handheld configurations provide flexibility for wildlife observation and security applications. Vehicle mount systems offer stable platforms for long-range surveillance operations.

Adjustment Mechanisms

Quality housing systems incorporate multiple adjustment points for interpupillary distance, angle positioning, and height settings. These adjustments properly align with user anatomy for comfortable extended use. Reliable locking mechanisms maintain settings during dynamic operational conditions.

Power Supply Components

Night vision goggles require stable electrical power to operate their miniature electronic systems effectively. Power supply components must deliver consistent voltage and extend operational duration, which makes them an essential night vision goggle part.

Battery Types

Lithium batteries provide excellent power density and longevity in various environmental conditions. For added support, rechargeable battery systems reduce long-term operating costs and supply consistent power availability. The typical battery life of night vision goggles ranges from 20 to 40 hours depending on environmental conditions and usage patterns.

Power Management Circuits

Advanced power management systems monitor battery voltage and automatically adjust system performance to maximize operational duration. Low battery indicators warn users when power replacement becomes necessary. Some systems will also include automatic shutdown features to preserve battery life during inactive periods.

External Power Options

External power connections allow users to operate night vision systems from vehicle electrical systems or larger battery packs. These connections are especially reliable during extended surveillance operations or training exercises. Proper voltage regulation protects sensitive components from power fluctuations in external systems.

IR Illuminators

Infrared (IR) illuminators provide additional light sources that remain invisible to the naked eye but improve night vision performance in extremely dark conditions. Adding these features to your night vision goggles provides safety for long monitoring missions.

LED Technology

Modern IR illuminators utilize high-efficiency LED arrays that produce focused infrared light with minimal power consumption. These miniature light sources offer extended operational life compared to traditional incandescent bulbs. Variable intensity controls allow users to adjust illumination levels based on operational requirements.

Beam Patterns

Focused beam patterns provide concentrated illumination for detailed observation of distant objects. For general surveillance, night vision goggles can also feature wide beam patterns to illuminate larger areas. As a reliable monitoring solution, adjustable beam systems will also offer flexibility for various operational scenarios.

Detection Considerations

While infrared light remains invisible to human vision, specialized detection equipment can identify IR illuminator signatures. Operators must consider detection risks when using supplemental illumination in tactical environments. Proper beam control minimizes signature visibility for operational effectiveness.

Many operators enhance or repair their night vision goggles with accessories to improve their visual quality. HVM Technology is a night vision component manufacturer that offers compatible parts for a wide range of goggles. Explore our collection today to learn more about our products and the benefits they offer.
